be patience to the heavy load.
Famous “Fairchild’s Conax model 602” first high freq instantaneous limiter.
Originally designed for studio applications
but most for LP’s disk cutting head. Immediately broadcasting engineers place it
successfully at on air audio processing side chain just to avoid over modulations due the
pre-emphasis works. Thus the “Conax” became the “father” of stereo pre-emphasis
limiter for broadcasting application. Incorporate with 2band super fast attack &
release times’ pre-emphasis limiter with clipping and high-pass filtering.
“Conax” is still effectively for HF limit applications on many today's studio
productions together with reference units from the past like Gates or Collins as May you
see on following photos.
Great sounding “Variable MU” compressor peak limiter with famous “6386” valve
made by Collins. Co at 1960 and is still in use as a reference by
many recordings studios.
you see schematics of Collins 26U1.

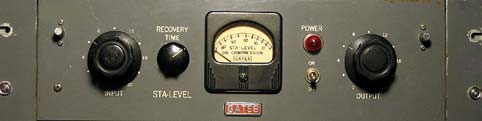

SA-38, SA-39A and STA Level.
Level Devil, SA-38, SA-39A and STA Level.
Other great reference units “MU Limiting Amplifiers” from the past made by thrilling
Gates. Co at the Hi End era of 1960.
that baby devil wait yours restoration job :)
On the rack of rare processing equipments of Tarbox Road Studios which is located in Cassadaga, NY near Fredonia, you
may see at left, two CBS Volumax & beneath Gates SA-39A, at center, two Collins 26U1
& beneath Fairchild’s Conax 602, at right, two Dorrough’s DAP 610 & beneath
Gates Solid Statesman.
All the photos are
courtesy by Greg Snow (A passionate fan of
thrilling Gates units) tech consultant and one of the founders of Tarbox Road Studios NY.
a lot Gregory for your help :)
Greetings from Athens GR.
LA-3 comp limiter by Urei. Legend of Bill Putnam.
